The BGD & BCSD rubber nozzles trolley mounted for exhaust gas extraction are an ideal solution for sucking the exhaust gas of a vehicle without mount to the terminal. Thanks to the wheels, they can be moved around the work area when necessary and put away, without effort, once they have been used.
Ideal for vehicles with single or dual exhausts, they are available for connection to hoses with diameters from 75 to 125 mm. The version for dual exhausts incudes two sections of neoprene hose (not included) connected to a Y-shaped junction useful to manage the connection to the suction line.

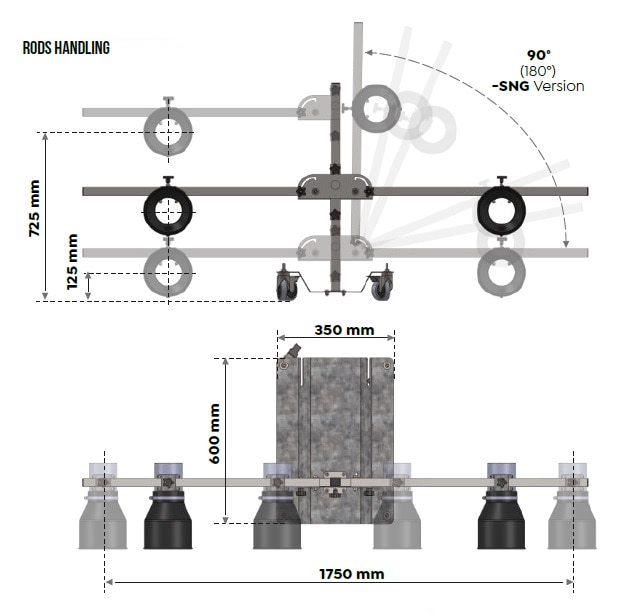

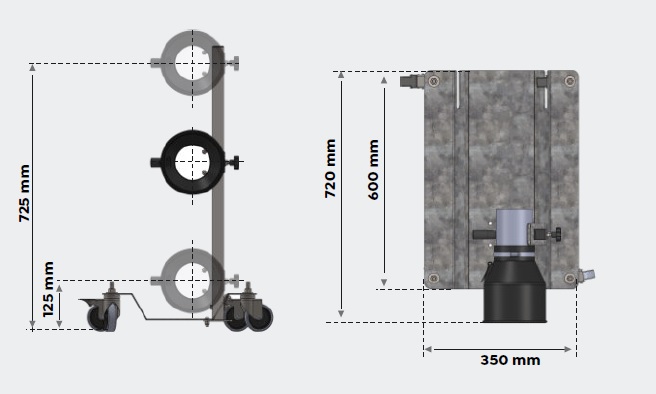

In the single exhaust version, height adjustment of the nozzle is obtained by a system managed by a lobe handwheel which unlocks its movement when it needs to be adjusted and locks it once the desired position is obtained. In the version for dual exhausts, with single or double joint, it is also possible to rotate the support arms to further enhance the positioning of the nozzles.
